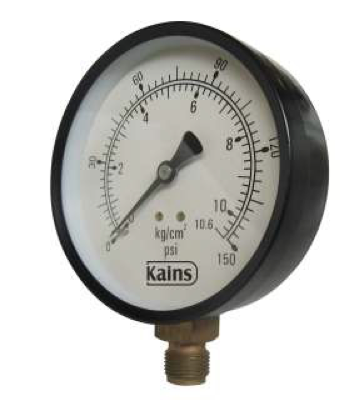

Type: Non Weather proof

Specification

• Nominal sizes: 1 ½” , 2”, 2 ½”, 3”, 4”, 6”, 8”, 10”
• Case and Bezel: M S Rust protected
• Wetted Parts: Brass
• Moment: Brass
• Pressure Range: up to 1400kg
• Standard units: Kg/cm2 With PSI
• Vacuum : available in selected nominal sizes

Application

• For utility measurement

Optional

• Other standard Units
• Other standard threads
• Tailor made dial markings
• S S 304 non weather proof case and bezel

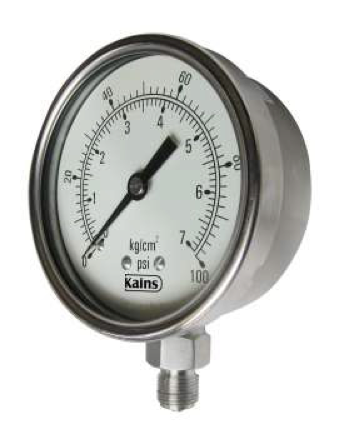

Type: Weather proof / Glycerin filled

Specification :

• Nominal sizes: 1 ½” , 2”, 2 ½”, 3”, 4”, 6”, 8”, 10”
• Case and Bezel: S S with screwed bezel
• Wetted Parts: 316 S S
• Moment: 304 S S
• Pressure Range: up to 1400kg
• Standard units: Kg/cm2 With PSI
• Vacuum : available in selected nominal sizes

Application

• For industrial process pressure measurement

Optional

• Other standard Units
• Other standard threads
• Tailor made dial markings

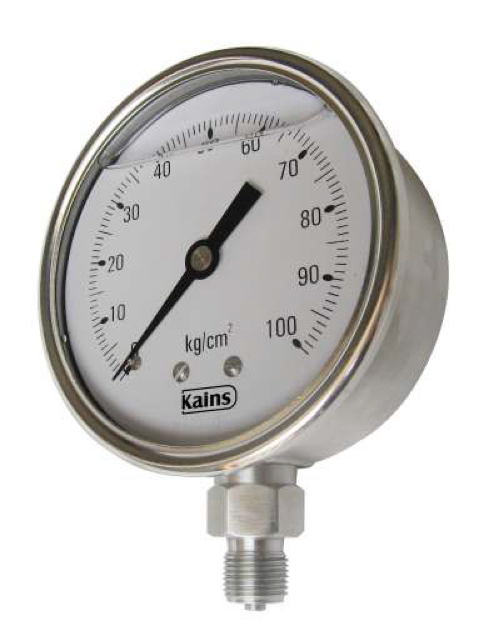

Type: Weather proof / Glycerin filled

Specification :

• Nominal sizes: 1 ½” , 2”, 2 ½”, 3”, 4”, 6”, 8”, 10”
• Case and Bezel : S S with Crimped bezel
• Wetted Parts: 316 SS / 304 SS / Brass
• Moment: 304 SS / Brass
• Pressure Range: up to 3500kg
• Standard units: Kg/cm2 With PSI
• Vacuum : available in selected nominal sizes

Application

• For the process medium: which shall not clog the screwed end especially for hydraulic fluids.

Optional

• Other standard threads
• Tailor made dial markings

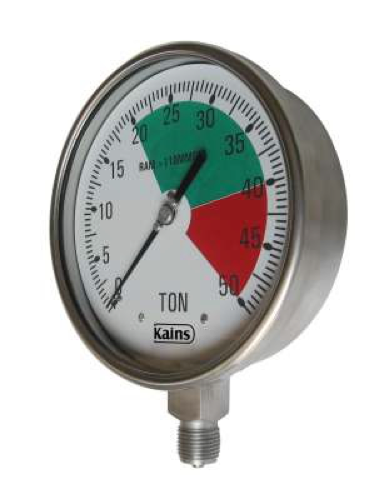

Type: Weather proof / Glycerin filled

Specification :

• Nominal sizes: 4”, 6”,
• Case and Bezel : S S with Crimped bezel / screwed bezel
• Wetted Parts: 316 SS / 304 SS
• Moment: 304 SS / Brass
• Pressure units: Ton/ kn

Application

• For the process medium: which shall not clog the screwed end especially for hydraulic fluids.

Optional

• Other standard threads
• Tailor made dial markings

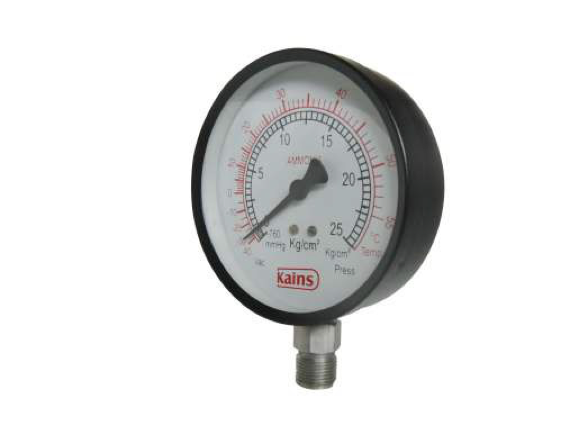

Type: Commercial / Weather proof / Glycerin filled

Specification

• Nominal sizes: 4”
• Case and Bezel: MS rust protected / S S with Crimped bezel
• Wetted Parts: 316 / 304 S S /
• Moment: 304 S S
• Pressure Range: up to 25kg
• Standard Connection: ¼ NPT

Optional

• Other standard threads
• Tailor made dial markings

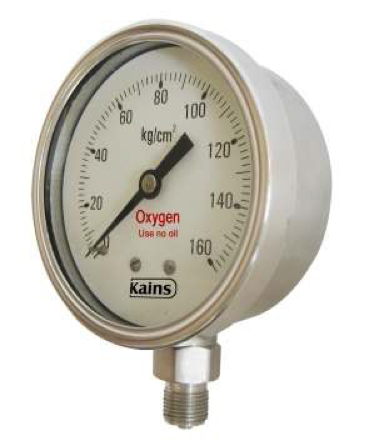

Type: Weather proof / Glycerin filled

Specification :

• Nominal sizes: 4”
• Case and Bezel: MS rust protected / S S with
• Crimped bezel/ S S with screwed bezel
• Wetted Parts: Brass / 316 / 304 S S /
• Moment: Brass / 304 S S
• Pressure Range: up to 1000kg

Application

• For Air and gas products and shall not clog the screwed end especially for Oxygen, Nitrogen, LPG, Argon, Acetylene, Helium.

Optional

• Other standard threads
• Tailor made dial markings

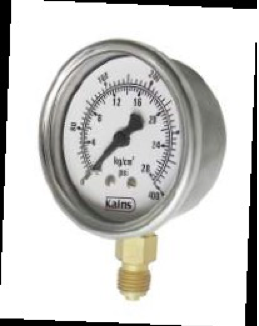

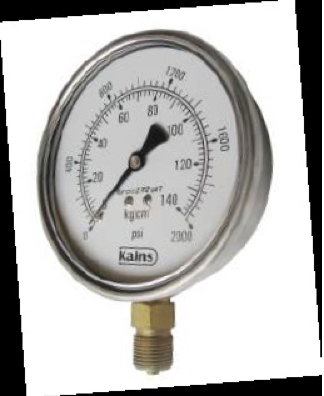

Type: Weather proof / Glycerin filled

Specification :

• Nominal sizes: 2 ½”, 4”, 6”
• Case and Bezel: MS rust protected /S S with Crimped bezel
• Wetted Parts: Brass / 304 S S
• Moment: Brass/ 304 S S
• Pressure Range: up to 700kg

Application

• Low cost design especially for hydraulic / pneumatic and general utility application.

Optional

• Other standard threads
• Tailor made dial markings

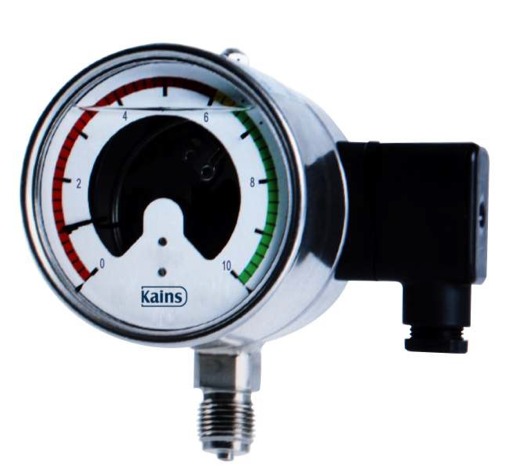

Type: Weather proof / Case filled

Specification :

• Nominal sizes: 4”, 6”
• Case and Bezel: S S with screwed bezel
• Wetted Parts: 316 / 304 S S / Brass
• Moment: 304 S S/ Brass
• Pressure Range: up to 2000kg
• Standard units: Kg/cm2 With PSI
• Vacuum : available in selected nominal sizes

Optional

• Other standard threads
• Tailor made dial markings
